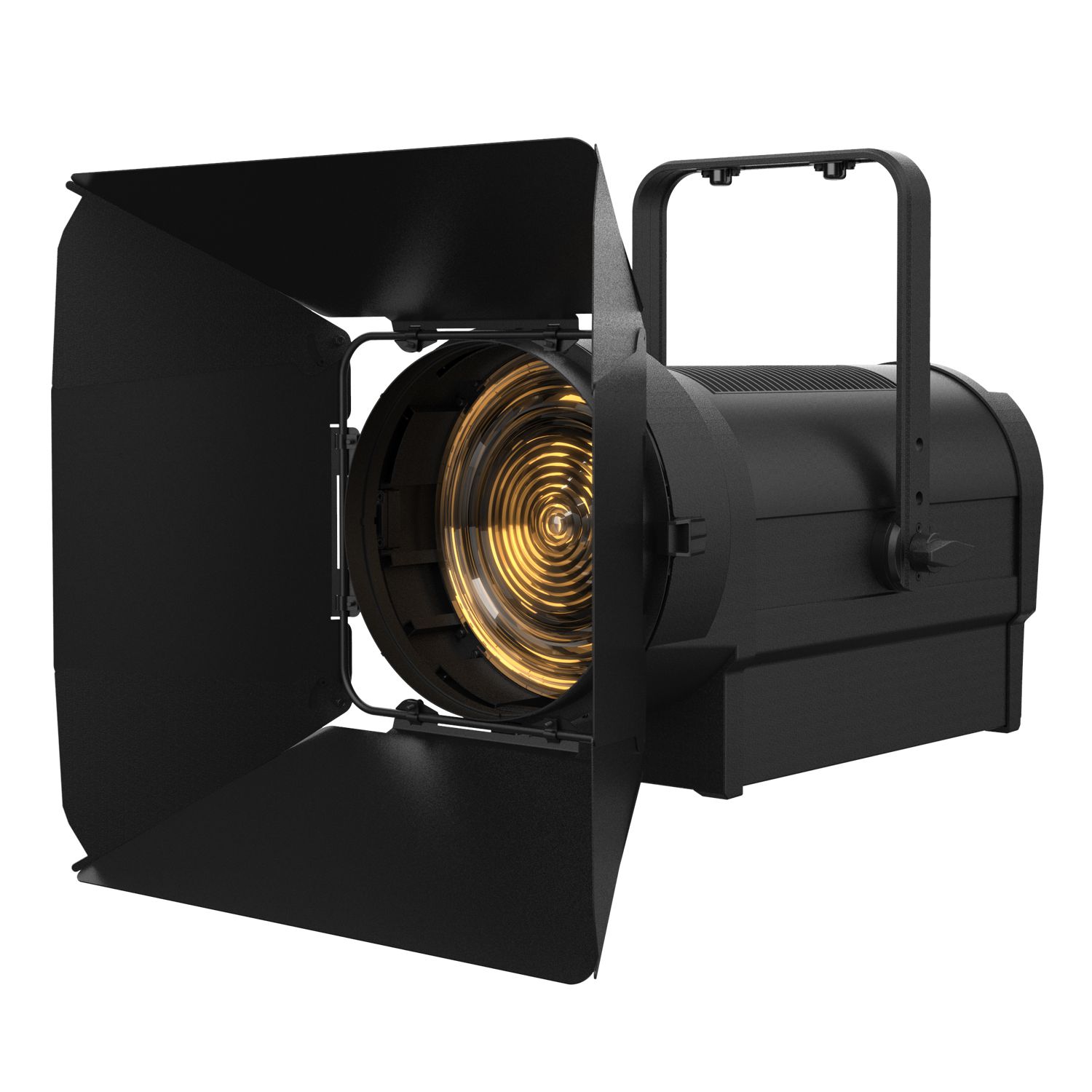

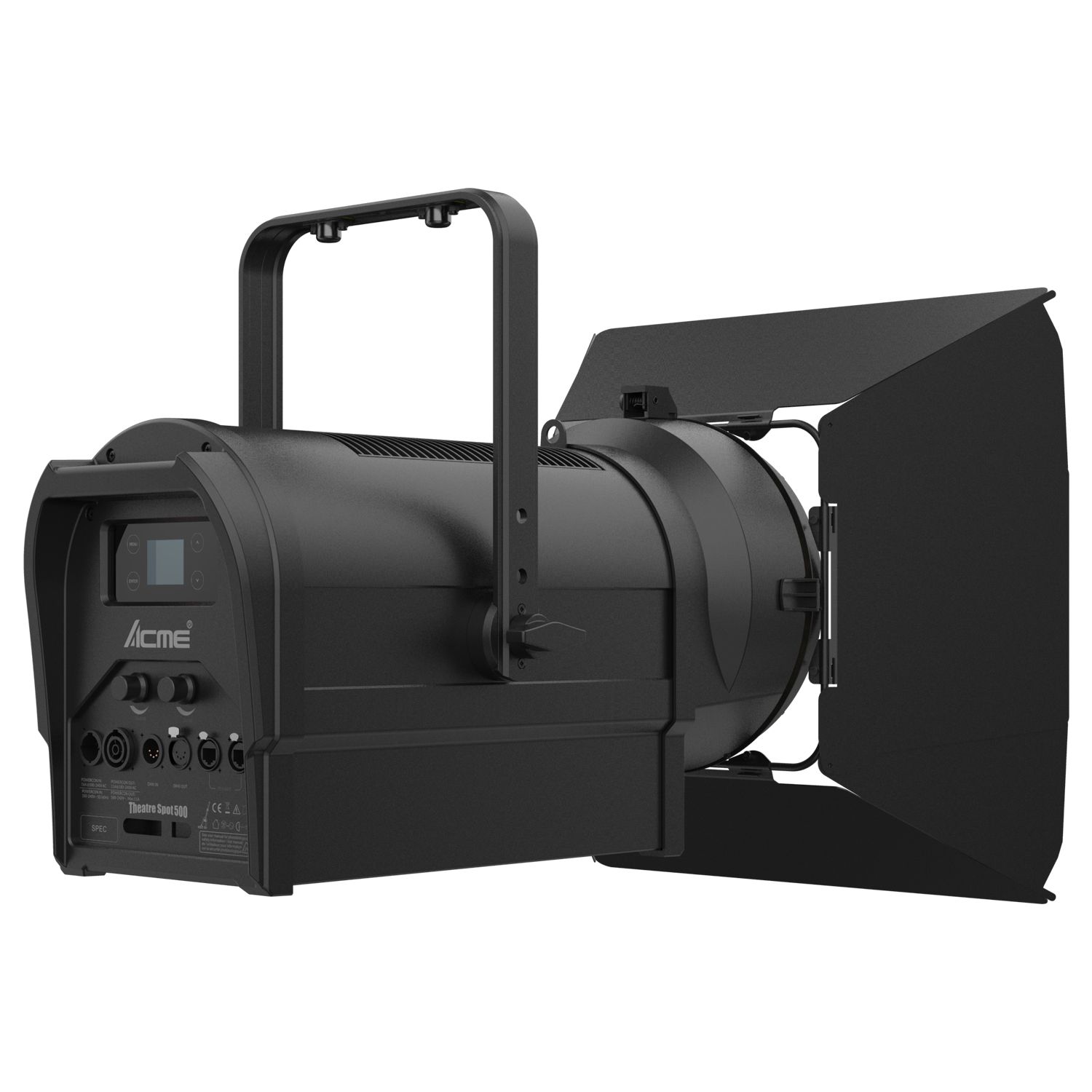

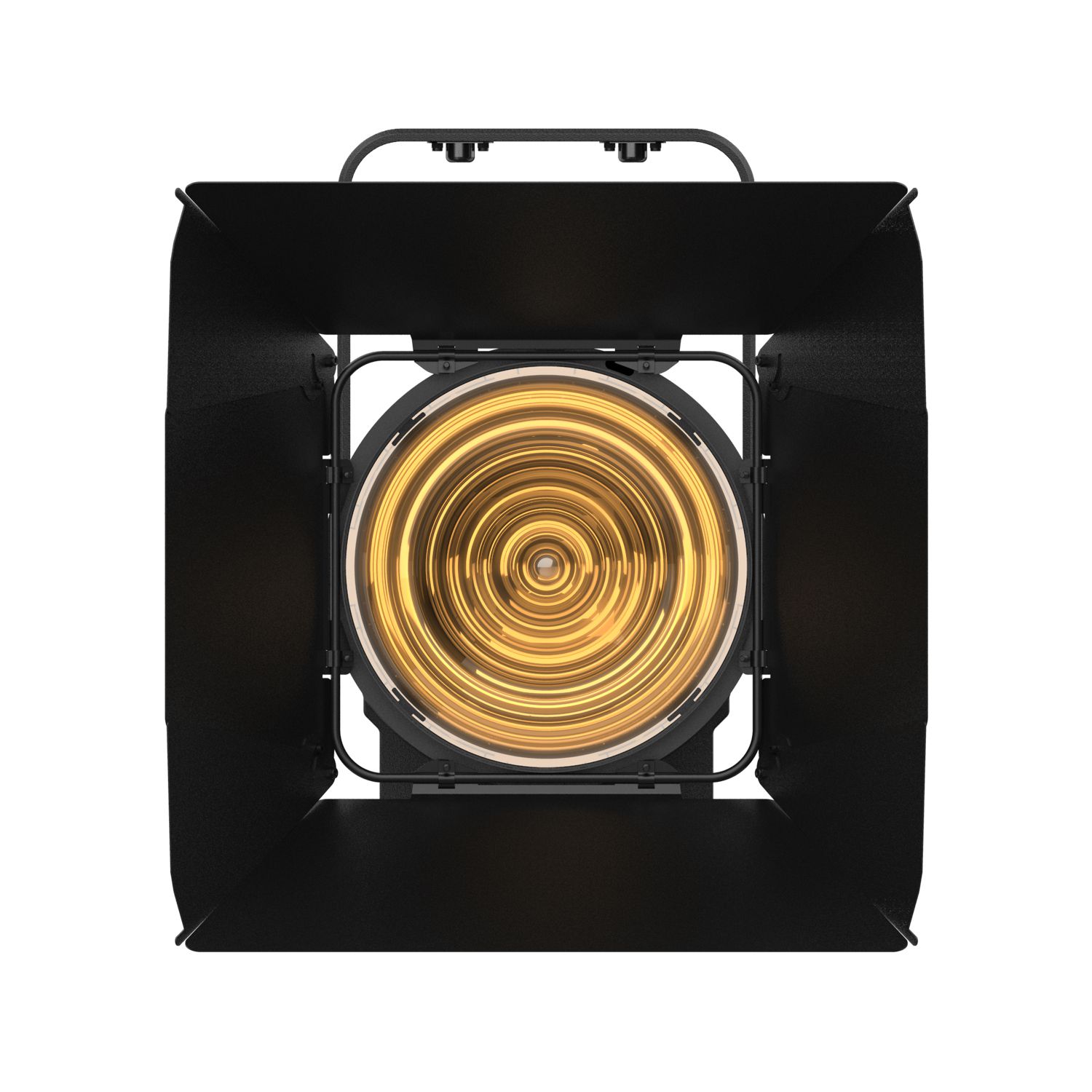

Model

• TS 500 WW

Light Source

• Light Source: 450W WW LED engine
• Color Temperature Output of Fixture: 3,200K
• Total Lumen Output of Fixture: 28,000 lumens
• Life Expectancy: 20,000 hours*
  *Source manufacturer specification

Optical System

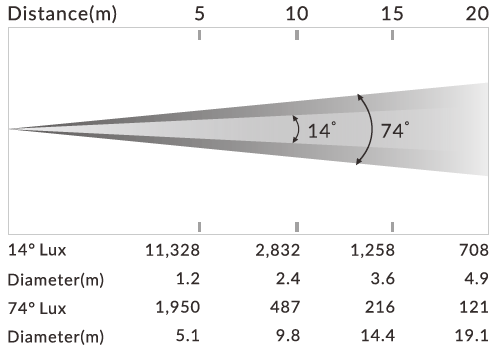

• Zoom Range: 14°-74°
• Diameter of Front Lens: 250mm

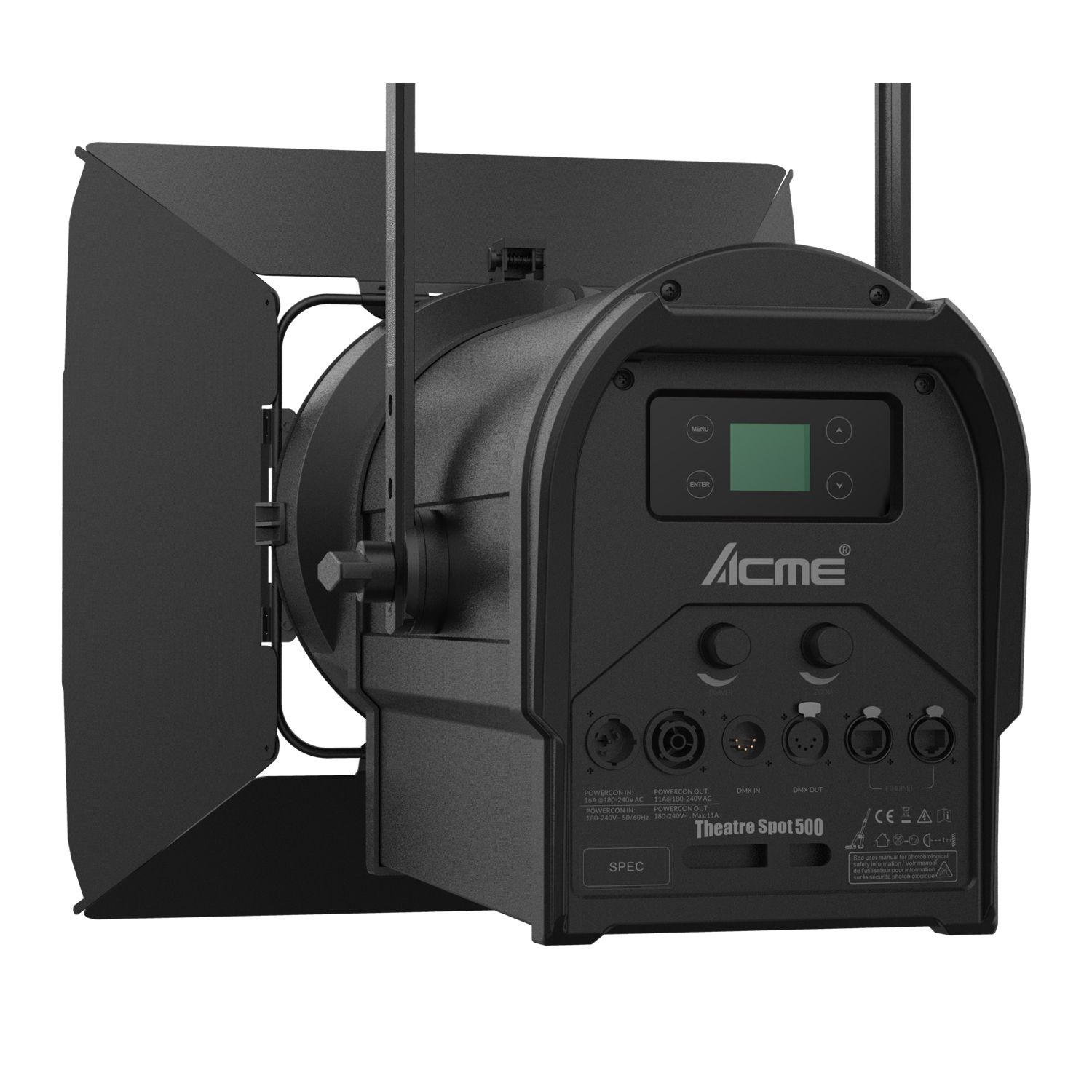

Control

• 4 button touch control panel
• Display: LCD display
• Operational Modes : DMX Control, Manual Control
• Protocols: DMX512, RDM, Art-Net, sACN
• DMX Protocol Modes: 2
• Control Channels: 4/6
• Firmware Upgrade: Upgrade via DMX link

Other Effects

• Outstanding strobe effect with variable speed
• Motorized zoom and manually zoom control
• Smooth dimming 0-100% (4 user selectable dimming curves)

Electrical and Connectors

• Input Voltage Range: 100-240Vac; 50/60Hz
• Power Consumption: 460W
• Power In/Out: Power connector in/out (TRUE1 type)
• Data In/Out: 3-pin or 5-pin XLR, RJ45 connector

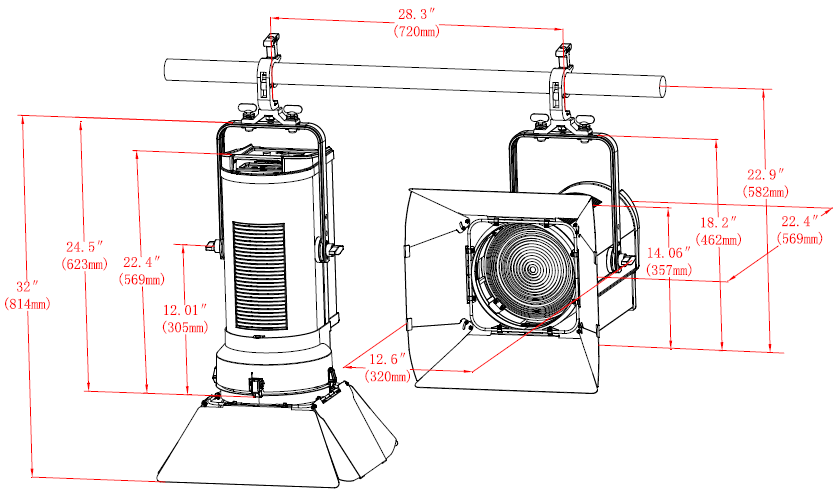

Physical Information

• Fixture Dimensions:
  • Width: 320 mm (12.6")
  • Depth: 569 mm (22.4")
  • Height: 462 mm (18.2")
  • Weight: 13.2 kg (29.2 lbs)

Packing Information

• Carton Dimensions:
  • Width: 720 mm (28.3")
  • Depth: 420 mm (16.5")
  • Height: 540 mm (21.3")
  • Weight:
    • G.W.: 18.5 kg (40.8 lbs) (one-pack loader carton)

Work environment

• Maximum Ambient Temperature: 40°C
• Minimum Operating Temperature: 0°C
• Maximum Surface Temperature: 55°C
• Protection Rating: IP20

Installation

• Horizontal or vertical mounting
• Universal working position
• 1 omega barket
• Safety cable attachment point

Included Items

• Digital user manual
• Power cable with TRUE1 type connector
• Barndoor
• 1 omega barket (3002000238)

Optional Accessories

• Clamp: C-250B (2060001632-B)
• Signal Line: 3-pin or 5-pin signal line, RJ45
• Safety Cable: 2060001603 (SW-05)
